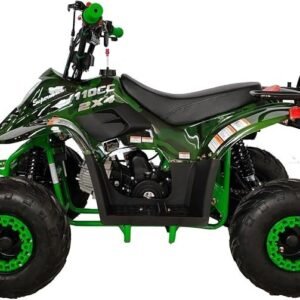

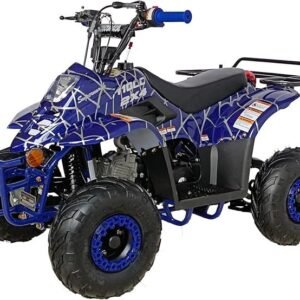

110cc Youth ATV with Fully Automatic Transmission and Electric Start

This compact 110cc youth ATV is designed for confident off‑road fun with an easy-to-use fully automatic transmission and electric start. Built on a durable steel chassis with knobby tires, it offers balanced handling for riders transitioning to small four-wheelers. Common search phrases include youth 110cc atv, kids quad with automatic transmission, and electric start youth four wheeler.

Key Specifications

Engine: 110cc, single-cylinder, 4-stroke, air-cooled
Transmission: Fully automatic, selectable reverse
Start System: Electric start with keyed ignition
Drive: Chain drive, rear solid axle
Brakes: Front drum, rear hydraulic disc (varies by batch)
Suspension: Front independent A-arm, rear mono shock
Tires: Front 145/70-6, Rear 145/70-6 (typical sizing)
Fuel System: Carbureted

Size and Dimensions

Overall Length: ~57–60 inches (145–152 cm)
Overall Width: ~36–38 inches (91–97 cm)
Overall Height: ~37–39 inches (94–99 cm)
Seat Height: ~24–26 inches (61–66 cm)
Wheelbase: ~36–38 inches (91–97 cm)
Ground Clearance: ~3.5–4.5 inches (9–11 cm)
Dry Weight: ~180–200 lbs (82–91 kg)

Materials and Build

Frame: Welded tubular steel
Bodywork: Impact-resistant ABS/PP plastics
Handlebars: Steel with soft rubber grips
Footrests: Steel with textured inserts
Seat: Foam cushion with vinyl cover

Notable Features

Throttle limiter for adjustable speed control
Handlebar-mounted kill switch
Headlight and rear tail/stop light (where equipped)
Protective chain and exhaust guards
Pull-cord backup start on select versions

Usage and Fit

Ideal for riders seeking a small, automatic 4-wheeler for light trail use or open yard spaces. The compact footprint and low seat height help younger users grow skills with manageable power and predictable controls.

FAQs

What fuel does the 110cc engine use?: Unleaded gasoline is typically recommended. Check the owner’s manual for octane and capacity details.
Is the transmission fully automatic?: Yes, it uses a fully automatic gearbox with a selectable reverse gear for easy maneuvering.
Does it have a speed limiter?: Most models include an adjustable throttle screw to help set a maximum speed suitable for the rider.
What is the typical tire size?: Common sizes are 145/70-6 on both front and rear, providing stable traction on varied terrain.
What maintenance is required?: Perform regular checks of engine oil, chain tension and lubrication, air filter cleaning, brake adjustment, and fastener torque according to the maintenance schedule.

Note: Specifications and dimensions may vary slightly by production run. Always review the included manual for exact details and safe operation guidelines.
